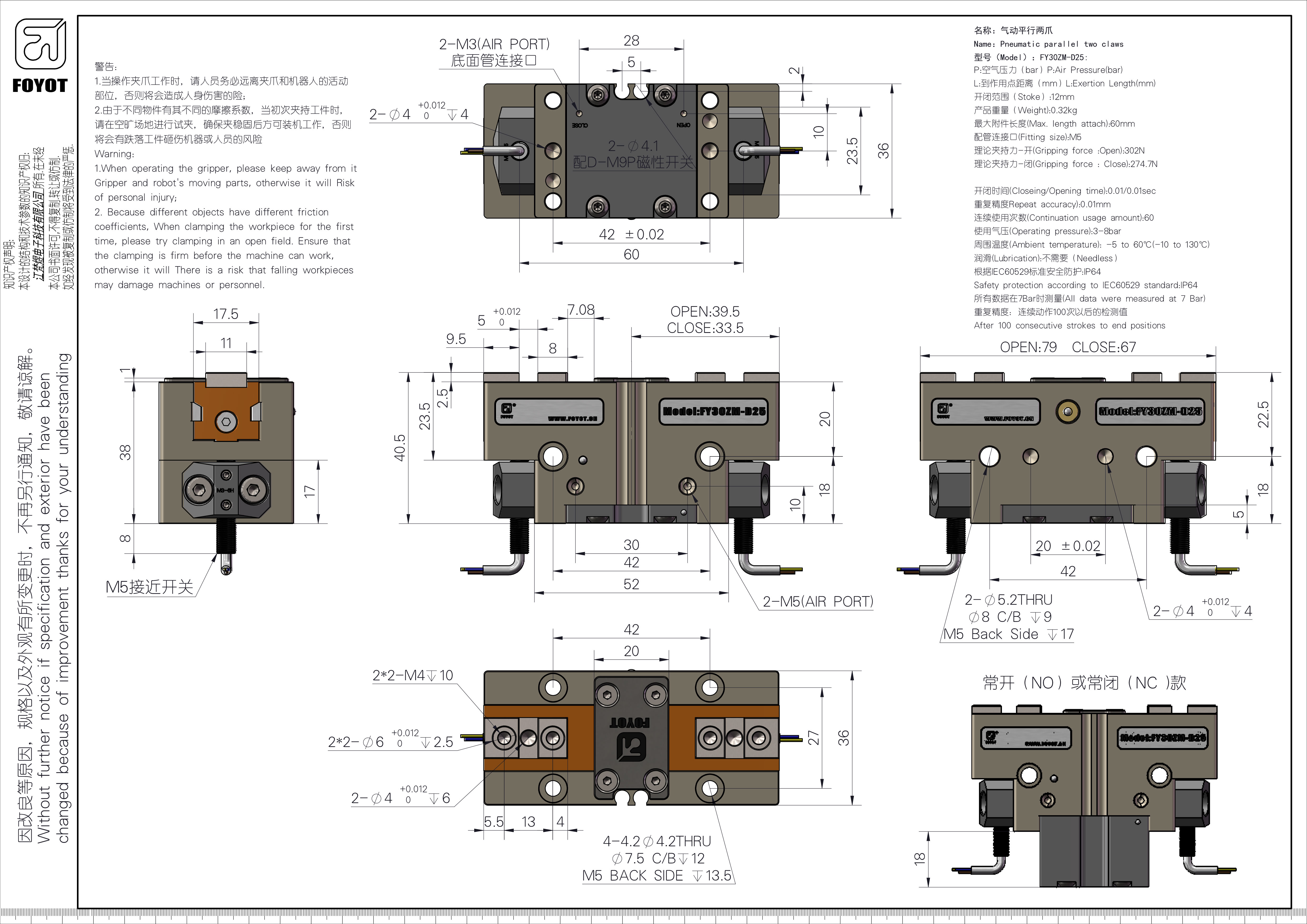

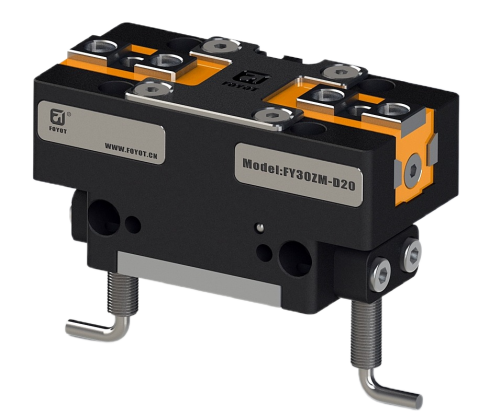

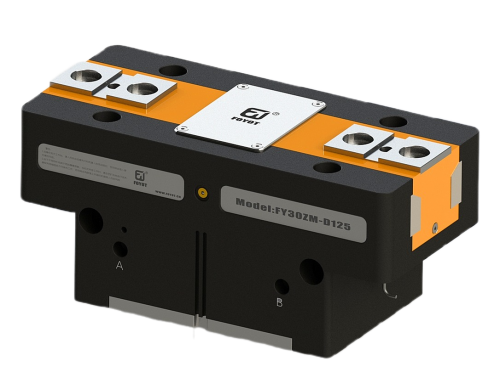

名称：气动平行两爪
Name:Pneumatic paral lel two claws
型号(Mode I):FY30ZM-D25:
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm
开闭范围(Stoke):12mm
产品重量(Weight):0.32kg
最大附件长度(Max.length attach):60mm
配管连接口（Fitting size):M5
理论夹持力-开Gripping force:Open):302N
理论夹持力-闭(Gripping force:Close):274.7N
开闭时间(Closeing/Opening time):0.01/0.01sec
重复精度(Repeat accuracy):0.01mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要（Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
