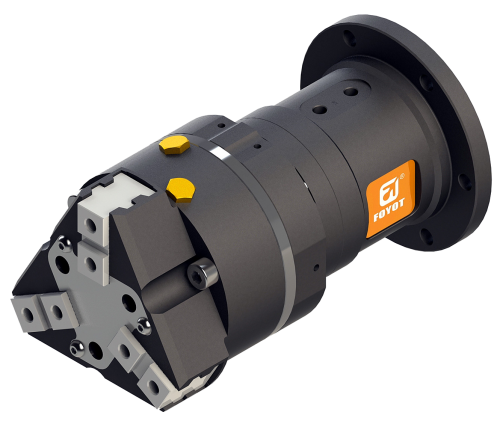

名称：气动无限连续旋转并夹持三爪-D40
型号(Mode I):FY-RAF56N-40-B
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke)：12mm
产品重量(Weight):1.56kg
最大指端长度（Max.length attach).:60mm
配管连接▣(Fitting size):M5-6H
理论夹持力-开（Gripping force:Open):769N
理论夹持力-闭(Gripping force:Close):686.7N
开闭时间Closeing/Opening time):0.02/0.02sec
重复精度(Repeat accuracy):0.01mm
连续使用次数(Continuation usage amount).:60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature:-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
