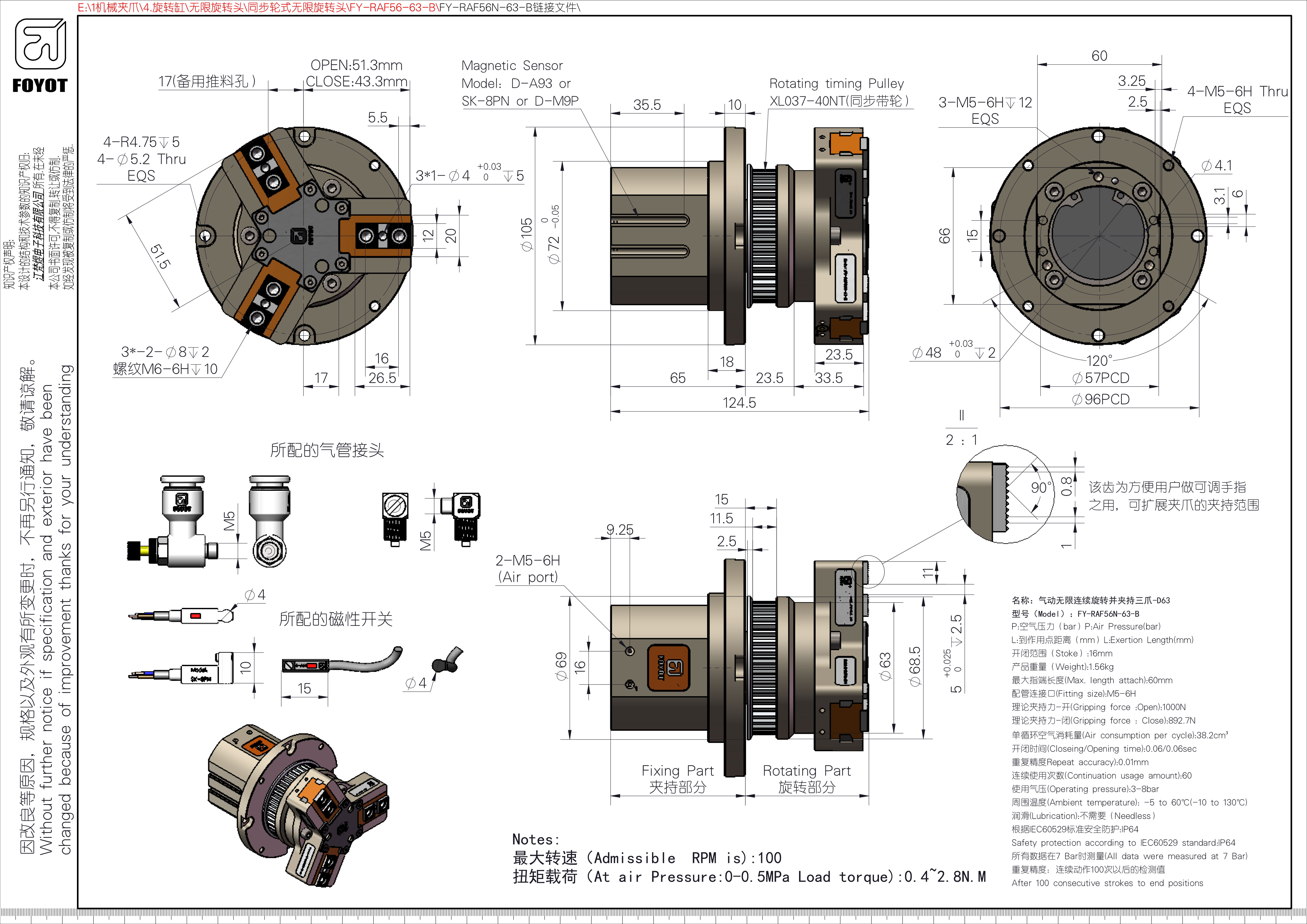

名称：气动无限连续旋转并夹持三爪D63
型号(Model):FY-RAF56N-63-B
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke)：16mm
产品重量(Weight):1.56kg
最大指端长度(Max.length attach):60mm
配管连接☐(Fitting size):M5-6H
理论夹持力-开Gripping force:Open:1000N
理论夹持力-闭(Gripping force:Close):892.7N
单循环空气消耗量(Air consumption per cycle):38.2cm3
开闭时i间(Closeing/Opening time):0.06/0.06sec
重复精度Repeat accuracy:0.01mm
连续使用次数(Continuation usage amount).:60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要(Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:P64
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
