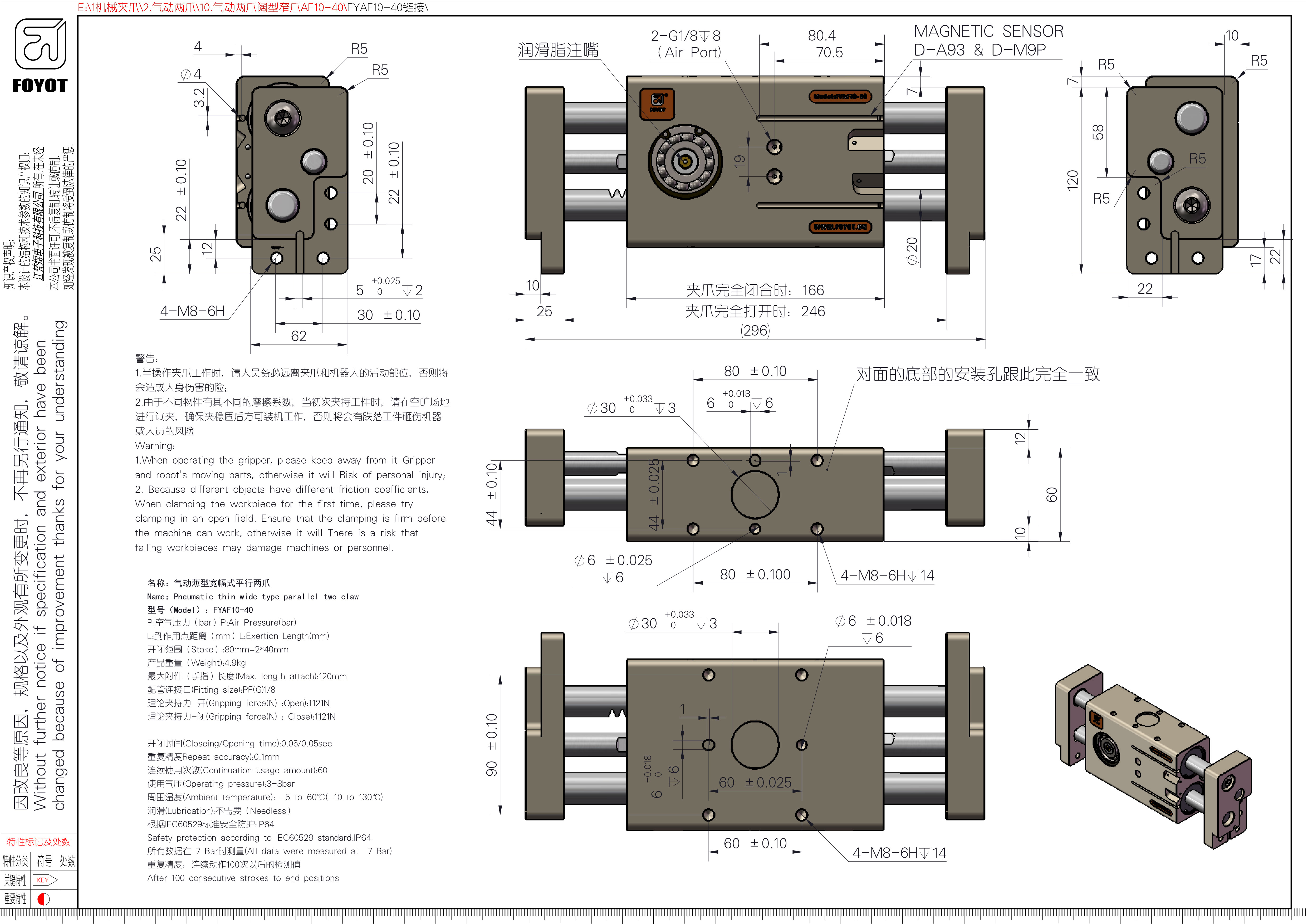

名称：气动薄型宽幅式平行两爪
Name:Pneumatic thin wide type paral lel two claw
型号(Model):FYAF10-40
P:空气压力(bar)P:Air Pressure(bar)
L:到作用点距离(mm)L:Exertion Length(mm)
开闭范围(Stoke):80mm=2*40mm
产品重量(Weight):4.9kg
最大附件（手指）长度(Max.length attach):120mm
配管连接口(Fitting size):PF(G)1/8"
理论夹持力-开(Gripping force(N):Open):1121N
理论夹持力-闭(Gripping force(N):Close):1121N
开闭时间（Closeing/Opening time):0.05/0.05sec
重复精度(Repeat accuracy):0.1mm
连续使用次数(Continuation usage amount):60
使用气压(Operating pressure):3-8bar
周围温度(Ambient temperature):-5to60℃(-10to130℃)
润滑(Lubrication):不需要（Needless)
根据IEC60529标准安全防护：IP64
Safety protection according to IEC60529 standard:IP64
所有数据在7Bar时测量(All data were measured at7Bar)
重复精度：连续动作100次以后的检测值
After 100 consecutive strokes to end positions
