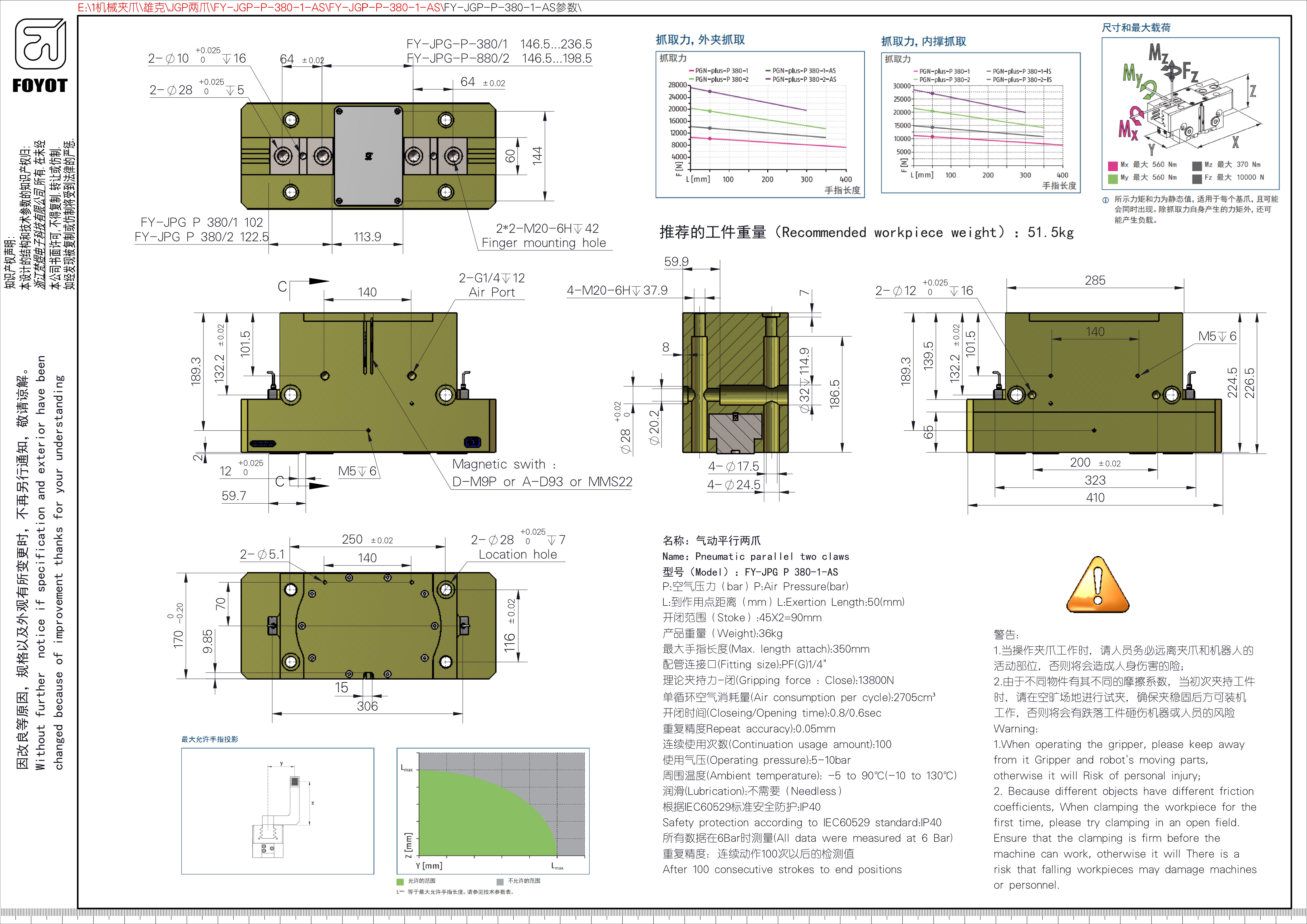

FY-JGP-P-380-1-AS

名称：气动平行两爪

Name:Pneumatic paral lel two claws

型号(ModeI):FY-JPGP380-1-AS

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length:50(mm)

开闭范围(Stoke):45X2=90mm

产品重量(Weight):36kg

最大手指长度(Max.length attach):350mm

配管连接口(Fitting size):PF(G)1/4"

理论夹持力-闭（Gripping force:Close):13800N

单循环空气消耗量（Air consumption per cycle):2705cm³

开闭时间（Closeing/Opening time):0.8/0.6sec

重复精度(Repeat accuracy):0.05mm

连续使用次数(Continuation usage amount):100

使用气压（Operating pressure):5-10bar

周围温度(Ambient temperature):-5to90℃(-10to130℃)

润滑(Lubrication):不需要(Needless)

根据IEC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
