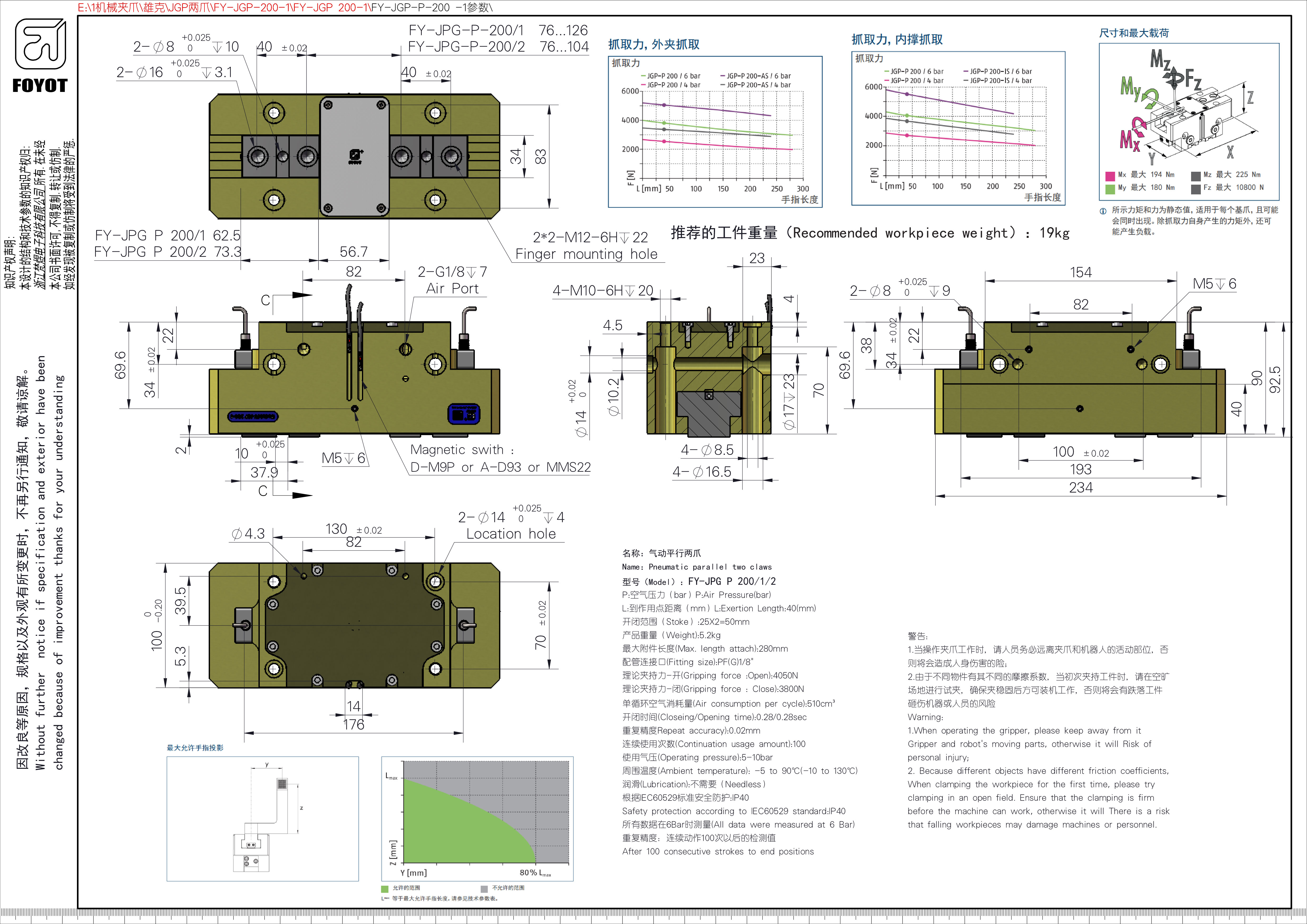

FY-JGP-P-200 -1

名称：气动平行两爪

Name:Pneumatic parallel two claws

型号(ModeI):FY-JPGP200/1/2

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length:40(mm)

开闭范围(Stoke):25X2=50mm

产品重量(Weight):5.2kg

最大附件长度(Max.length attach):280mm

配管连接口（Fitting size:PF(G)1/8"

理论夹持力-开（Gripping force):Open:4050N

理论夹持力-闭（Gripping force):Close:3800N

单循环空气消耗量(Air consumption per cycle):510cm³

开闭时间（Closeing/Opening time):0.28/0.28sec

重复精度Repeat accuracy:0.02mm

连续使用次数(Continuation usage amount):1O0

使用气压(Operating pressure):5-10bar

周围温度(Ambient temperature:-5to90℃(-10to130℃)

润滑(Lubrication):不需要（Needless)

根据IEC60529标准安全防护：IP40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
